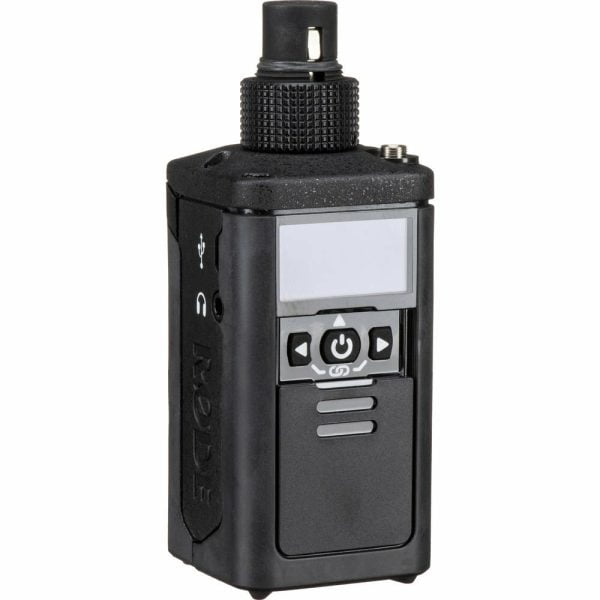

RODE TX-XLR Wireless Transmitter

Original price was: RM1,619.00.Current price is: RM1,450.00.

RODE TX-XLR Wireless Transmitter

The TX-XLR from Rode is a wireless XLR transmitter for the RodeLink digital wireless system (available separately). It can be used to provide one-touch sync with your wireless system, is capable of supplying 48V of phantom power for microphones through its XLR input, and plug-in power through its TRS input.

The TX-XLR sports an OLED panel, as well as an XLR input with a locking collar and a 3.5mm TRS locking input jack. This allows you to use various input configurations; though the TX-XLR can switch between its XLR and TRS inputs, you cannot use both at the same time. Whichever input you choose, you can power the unit with two AA batteries, a Sony NP-F battery, or even continuously via a micro-USB connection. While the unit will run up 7 hours, please note that activating phantom power will reduce the usable running time, depending on the power source you’re using. The unit comes with a built-in internal antenna.

Note: Each RODELink system creates a wireless peer-to-peer connection allowing the transmitter and the receiver to operate as a pair. This means that the transmitter can transmit audio to only one receiver at a time. Conversely, the receiver can only receive

Key features

For RODELink Digital Wireless Systems
One-Touch Sync
48V Phantom Power via XLR Jack
Plug-In Power via TRS

Technical specification

Input	XLR with locking collar 3.5 mm TRS locking mini-jack
Antenna	Internal
Input Impedance	XLR: 1 kOhm 3.5 mm TRS: 10 kOhms
Phantom Power	48 V through XLR jack
Plug-in power	Available through TRS Jack
Power Source	2 X AA battery, Sony NP-F battery or micro-USB
Battery Life	Approximately seven hours, less with phantom power running
Dimensions (H x W x D)	4.7 x 1.8 x 1.8″ / 12 x 4.5 x 4.5 cm
Panel	OLED
Weight	7.8 oz / 222 g
